Analytics and Metrics

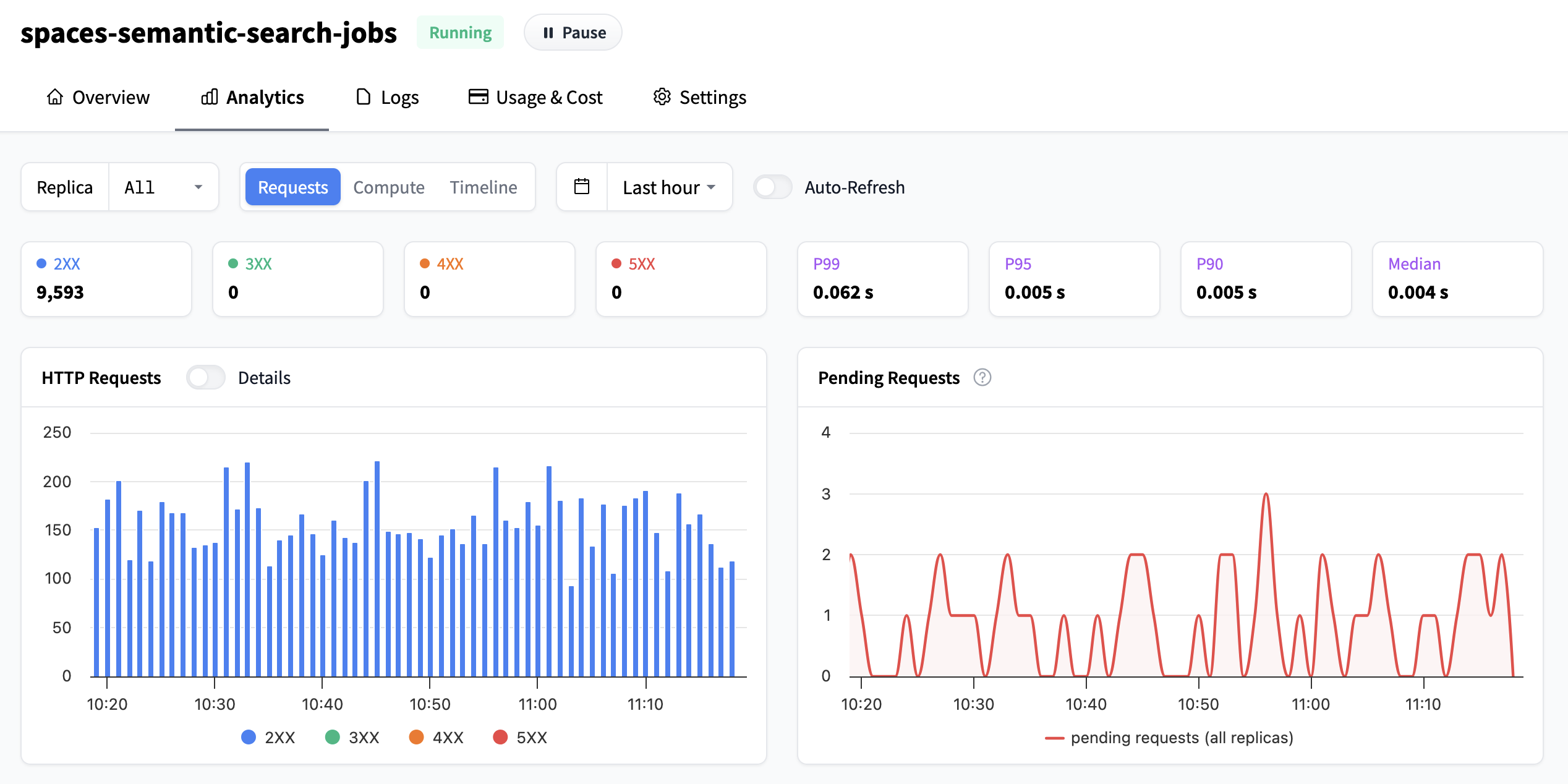

The Analytics page is like the control center for your deployed models. It tells you in real-time what’s going on, how many users are calling your models, about hardware usage, latencies, and much more. In this documentation we’ll dive into what each metric means and how to analyze the graphs.

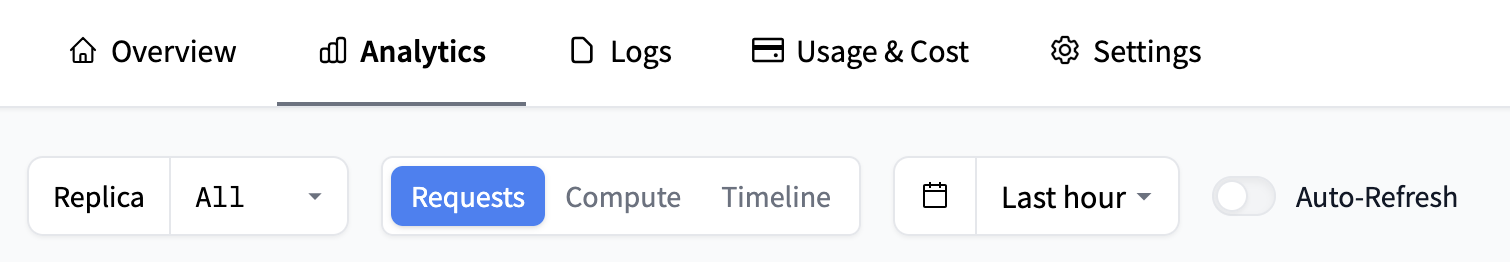

In the top bar, you can configure for which time frame you’ll inspect the metrics, this setting affects all graphs on the page. You can choose between any of the existing settings from the drop down, or click-and-drag over any graph for a custom timeframe. You can also enable/disable auto refresh or view the metrics per replica or for all.

Understanding the graphs

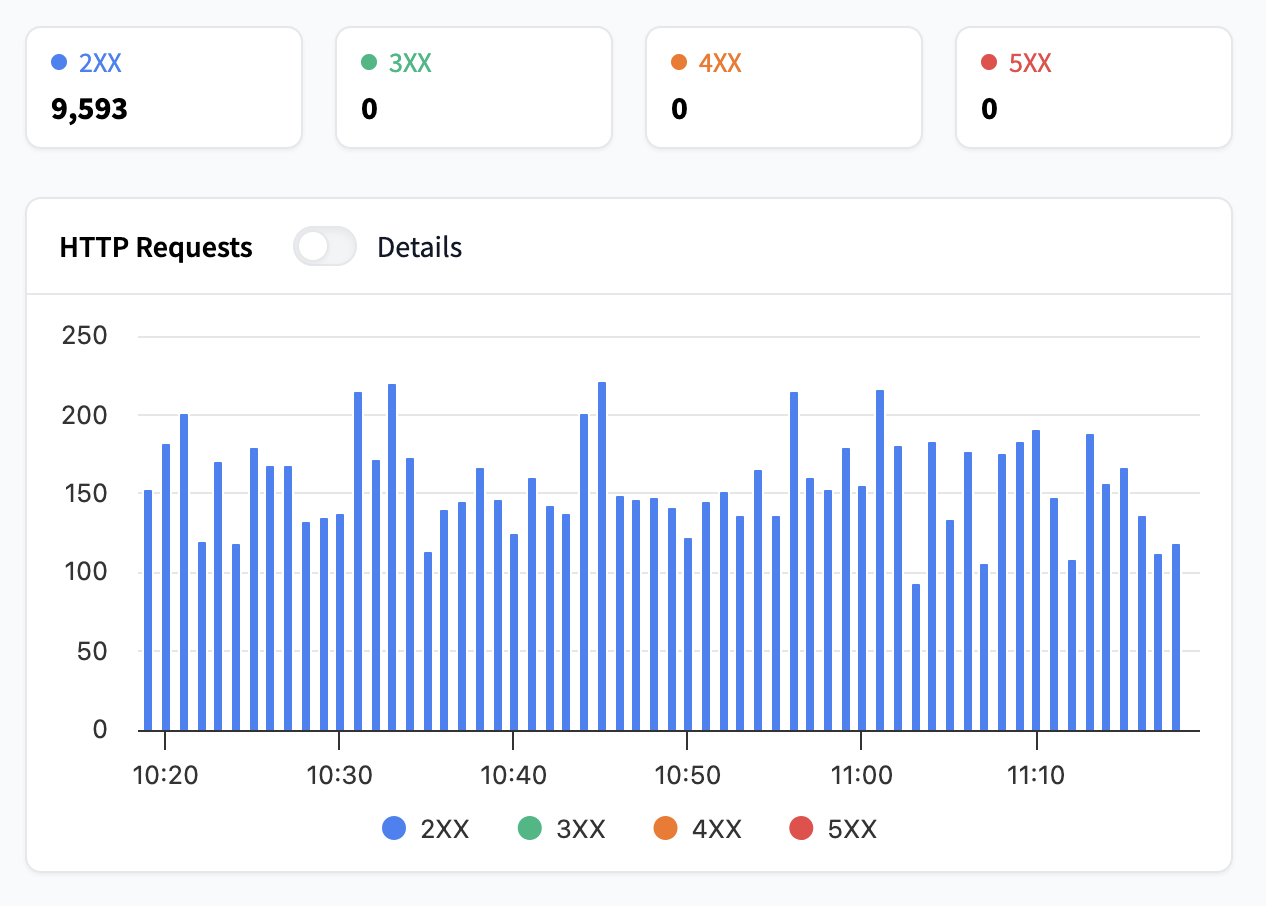

Number of Requests

The first graph at the top left shows you how many requests your Inference Endpoint has received. By default they are grouped by HTTP response classes, but by switching the toggle you can view them by individual status. As a reminder the HTTP response classes are:

• Informational responses (100-199): The server has received your request and is working on it. For example, 102 Processing means the server is still handling your request.
• Successful responses (200-299): Your request was received and completed successfully. For example, 200 OK means everything worked as expected.
• Redirection messages (300-399): The server is telling your client to look somewhere else for the information or to take another action. For example, 301 Moved Permanently means the resource has a new address.
• Client error responses (400-499): There was a problem with the request sent by your client (like a typo in the URL or missing data). For example, 404 Not Found means the server couldn’t find what you asked for.
• Server error responses (500-599): The server ran into an issue while trying to process your request. For example, 502 Bad Gateway means the server got an invalid response from another server it tried to contact.

We recommend checking the MDN web docs for more information on individual status codes.

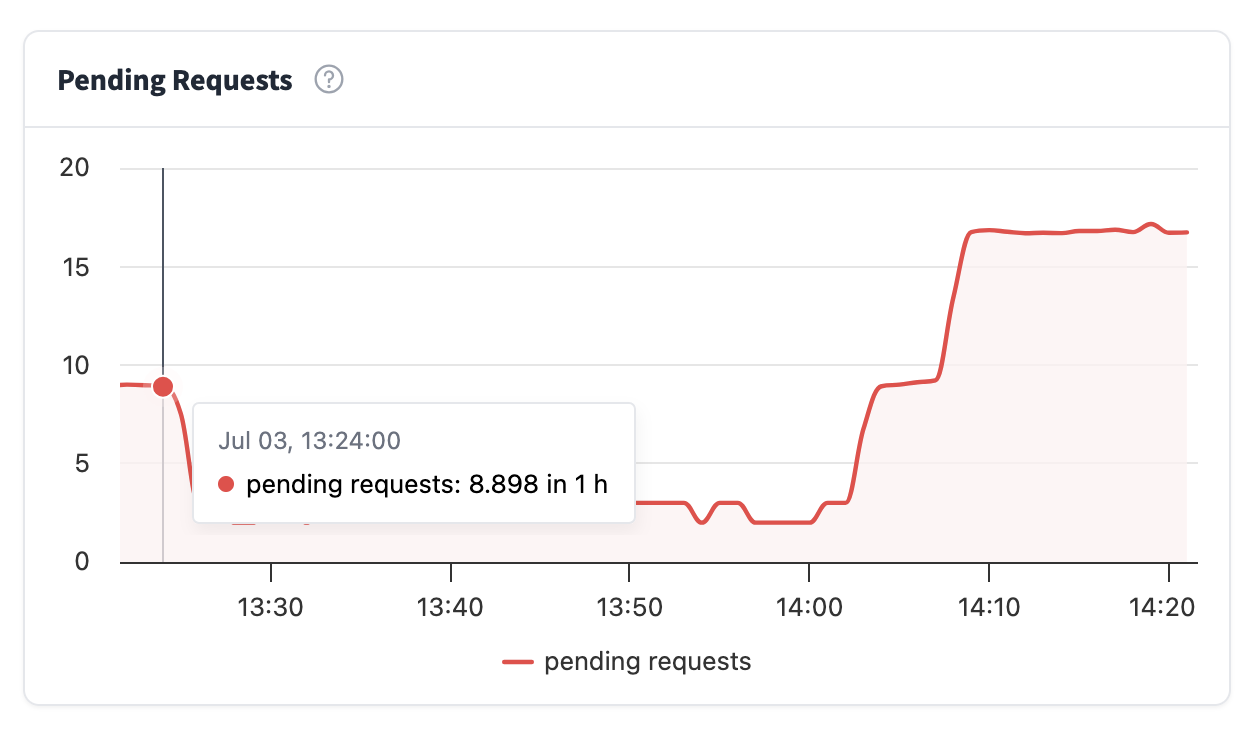

Pending Requests

Pending requests are requests that have not yet received an HTTP status, meaning they include in-flight requests and requests currently being processed. If this metric increases too much, it means that your requests are queuing up, and your users have to wait for requests to finish. In this case you should consider increasing your number of replicas or alternatively use autoscaling, you can read more about it in the autoscaling guide

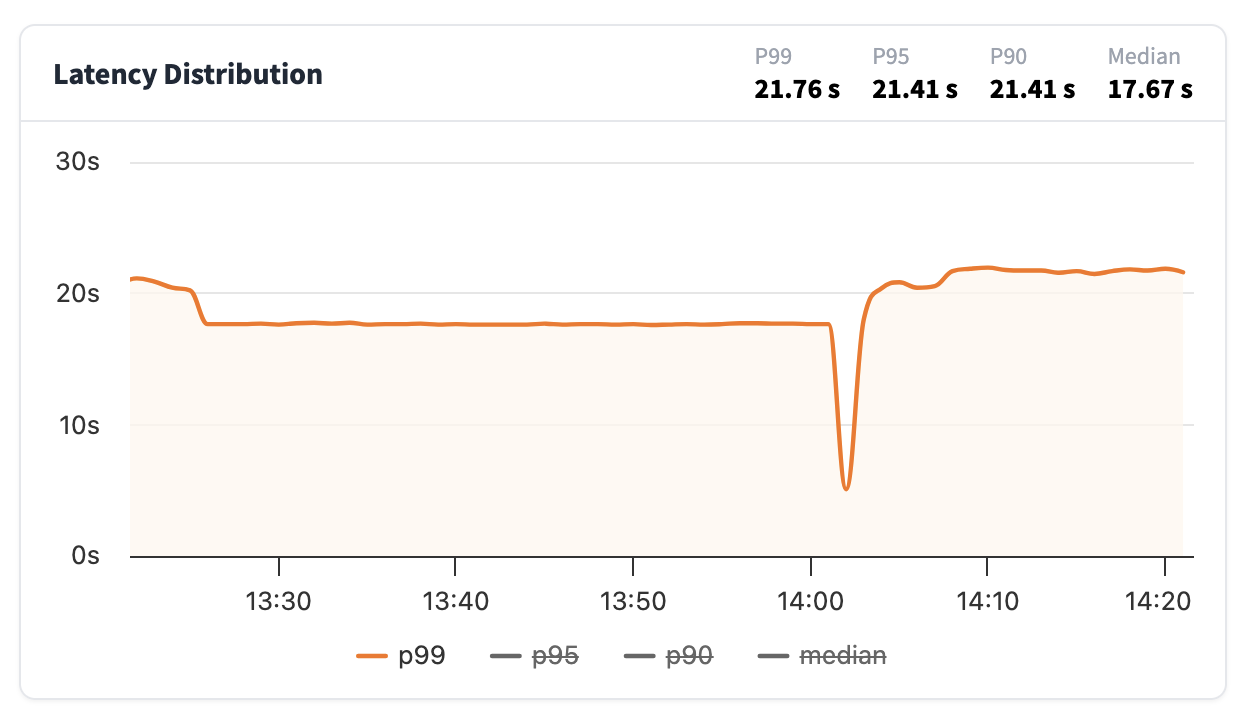

Latency Distribution

From this graph you’ll be able to see how long it takes for your Inference Endpoint to generate a response. Latency is reported as:

• p99: meaning that 99% of all requests were faster than this value
• p95: meaning that 95% of all requests were faster than this value
• p90: meaning that 90% of all requests were faster than this value
• median: meaning that 50% of all requests were faster than this value

Usually a good metric is also to look at how big the difference is between the median and p99. The closer the values are to each other, the more uniform the latency is, whereas if the difference is large, it means that the users of your Inference Endpoint have in general a fast response but the worst case latencies can be long.

Replica Status

In the replica status graph, you’ll see in the basic view how many running replicas you have during a point in time. The red line shows what your current maximum replicas setting is.

If you toggle the advanced setting, you’ll instead see the different statuses of the individual replicas, going from pending all the way to running. This is very useful to get a sense of how long it takes for an endpoint to actually become ready to serve requests.

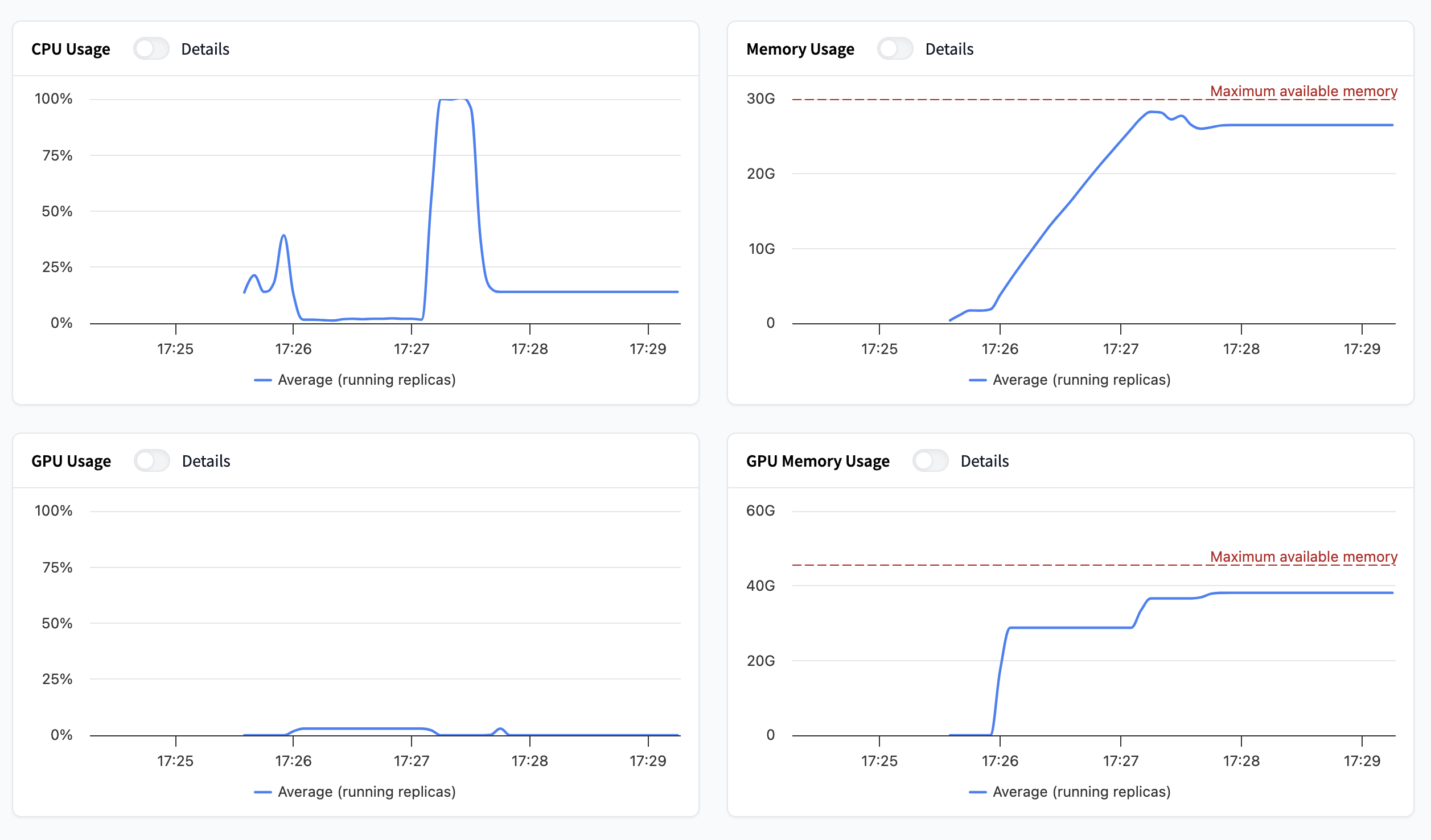

Hardware Usage

The last four graphs are dedicated for the hardware usage. You’ll find:

• CPU usage: How much processing power is being used.
• Memory usage: How much RAM is being used.
• GPU usage: How much of the GPU’s processing power is being used.
• GPU Memory (VRAM) usage: How much GPU memory is being used.

If you have autoscaling based on hardware utilization enabled, these are the metrics that determine your autoscaling behaviour. You can read more about autoscaling here

Create an integration with the Inference Endpoints Metrics API

This feature is currently in Beta. You will need to be subscribed to Enterprise to take advantage of this feature.

You have the ability to integrate the metrics of your Inference Endpoint(s) to your internal tool.

Utilizing OpenMetrics, you can create an integration to allow for a more granular view of your Endpoint’s metrics in almost-real-time, showing for example:

• requests grouped by replica
• latency distribution of requests
• hardware metrics for all accelerator types

OpenMetrics is a standardized format for representing and transmitting time series data, making it easier for systems to consume and process metrics, ensuring that the data is structured optimally for storage and transport.

Further configurations and notifications can be set up for your Endpoints based on these metrics in your internal tool.

Connect with your internal tool

There are a variety of tools that work with OpenMetrics. You’ll need to set up an agent. Here’s some example docs to help get you started:

• Datadog
• Grafana

Subscribe to Enterprise

You can sign up for an Enterprise plan starting at $20/user/mo at anytime at https://huggingface.co/enterprise?subscribe=true. For any questions or feature requests, please email us at api-enterprise@huggingface.co
